Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-2835
Payment & Shipping Terms
Packaging Details: 1000 pcs/reel, antistactics bag
Delivery Time: 8~10 work days
Payment Terms: L/C, T/T
Supply Ability: 10,000,000 pcs per month
Led Light Source: |
SMD2835 |
Usage: |
Decorative Lighting |
Color: |
Warm White |
Lumens: |
21~25LM |
Certificate: |
LM-80 |
Lifespan(hours)): |
50000 |
Led Light Source: |
SMD2835 |
Usage: |
Decorative Lighting |
Color: |
Warm White |
Lumens: |
21~25LM |
Certificate: |
LM-80 |
Lifespan(hours)): |
50000 |

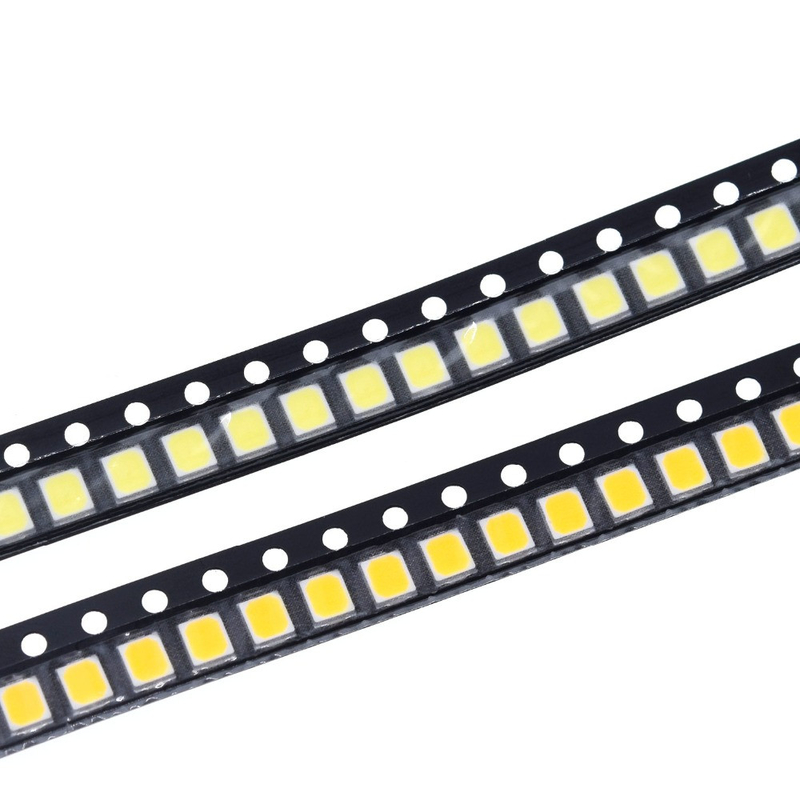

21-25 Lm White/Warm White 2835 Smd Led 0.2w High Bright Chip Leds
Introduction
Viewing angle:120 deg
The materials of the LED dice is InGaN
2.8mm×3.5mm×1.6mm SMT-LED
Emitted Color: Red,Green,Blue, Warm white, Natural white, Cool white
Lens Appearance: Water Clean
RoHS compliant lead-free soldering compatible
| Items No. | Emitting Color | Wave Length /CCT | Luminous Intensity | Forward Voltage | Forward Current | Viewing Angle |
| 2835 | Red | 625 ±5 nm | 250-900MCD | 2.0-2.4-2V | 30mA | 120° |
| Blue | 470 ±5 nm | 200-450MCD | 3.0-3.4V | 60mA | ||
| Green | 525 ±5 nm | 800-1600MCD |
3.0-3.4V |
60mA | ||
| Warm White | 3000K |
18-30LM |
3.0-3.4V | 60mA | ||
| Natrural white | 4000K | 18-30LM | 3.0-3.4V | 60mA | ||
| Cool white | 6000K | 18-30LM | 3.0-3.4V | 60mA |
Advantage
LED has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering Angle, good consistency, ultra-low power, ultra-long life and so on.The control circuit is integrated on the LED, making the circuit more simple, smaller and easier to install.
Application
◆ LCD Back Light
◆ LED Light Bar
◆ Advertisement
◆ Interior automotive lighting
