                                                                                                                                                                                                                                                P943 Led Chip Code 5050, 5050 Rgb Led Chip 18mA, 18mA Rgb SMD LED Chip


Type:	SMD LED CHIP	Wire:	99.99% Pure Gold
Working Lifetime(hour):	50000	Working Temperature(℃):	-20 - 40
Led Light Source:	Epistar SMD5050 Led	Application:	LANDSCAPE,Decorative Lighting,Theme Park,outdoor

Type:	SMD LED CHIP
Wire:	99.99% Pure Gold
Working Lifetime(hour):	50000
Working Temperature(℃):	-20 - 40
Led Light Source:	Epistar SMD5050 Led
Application:	LANDSCAPE,Decorative Lighting,Theme Park,outdoor

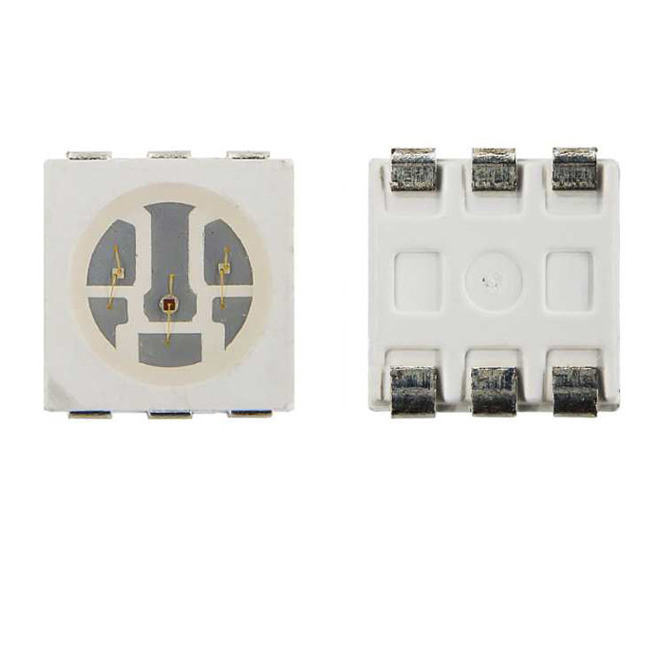

High Brightness P943 Led Chip Code 5050 Rgb Led Chip 18mA Diode

High Brightness Rgb SMD LED Chip 5050 With Built In IC Led Diode

IC Introduction

P943 is a kind of full color light source LED drive chip,using CMOS technology, supply 3 channel constant current drive and 256 gray modulated output.

Using double line transferring (DATA1 and DATA2), transferring from breakpoint, reconstruction inside, can improve transferring distance.
Used in driver display light change, different letter change, colorful cartoon picture. Work under offline or online according to different controller and different request from customer.
This product with the advantage of excellent performance and viewing effective, simple cascade, the power to transfer signal from break point,

will bring customer convenience at no more frequently repairing; stable data transferring, anti-jamming capability.

Product Datasheet

Items No.	Emitting Color	Wave Length /CCT	Luminous Intensity	Forward Voltage	Forward Current	Viewing Angle
P943 -5050 8 PIN	Red	625 ±5 nm	250-900MCD	1.8-2.2V	10-18mA	120°
	Blue	470 ±5 nm	200-450MCD	2.7-3.2V	10-18mA
	Green	525 ±5 nm	800-1600MCD	2.7-3.2V	10-18mA
	Yellow	590 ±5 nm	300-900MCD	1.8-2.2V	10-18mA
	Mix White	3000-20000K	1800-3500MCD	7-10V	36-60mA
	White	1800-7000K	2800-5000MCD	8-12V	36-60mA

Items No.	Emitting Color	Wave Length /CCT	Luminous Intensity	Forward Voltage	Forward Current	Viewing Angle
P943 -5050 6 PIN	Red	625 ±5 nm	270-900MCD	1.8-3.2V	10-18mA	120°
	Blue	470 ±5 nm	270-450MCD	2.8-3.2V	10-18mA
	Green	525 ±5 nm	800-1300MCD	2.8-3.2V	10-18mA
	Mix White	3000-20000K	2000-3200MCD	10-12.5V	36-60mA
	White	1800-7000K	3000-8000MCD	10-12.5V	36-60mA
