Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-480
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Product: |
COB Led Strip |
LED Qty: |
480pcs Per Meter |
Emitting Color: |
Natural White |
Voltage(v): |
DC24V |
Working Lifetime(hour): |
50000hours |
IP Rating: |
IP20/IP44 |
Product: |
COB Led Strip |
LED Qty: |
480pcs Per Meter |
Emitting Color: |
Natural White |
Voltage(v): |
DC24V |
Working Lifetime(hour): |
50000hours |
IP Rating: |
IP20/IP44 |

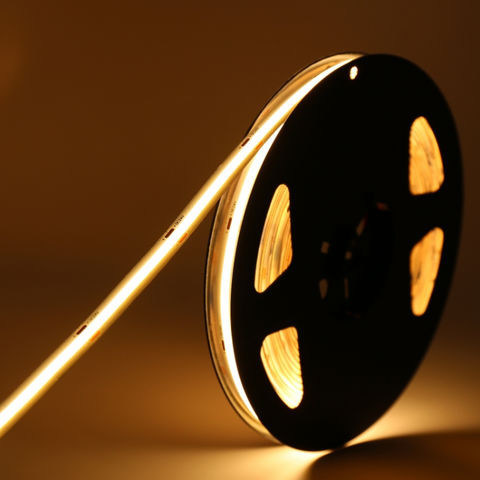

COB LED STRIP - 4000K, 480LEDS/M, CRI>90, 900LM/M, 24V, 5M ROLL
Product Introduction for COB led strip
1. Flexible COB led strip is a new design type of LED strip products. As the led strip is by SMD LED+ FPC, so there's some light dot or spot. Now this COB strip is take Flip chip technology, to bond the chip directly on the FPC board, and then cover up with phosphor & silicone gel directly.
2. We apply double layers FPC, the material of FPC is pure copper, so even we use high density leds on the FPC, it still can help to release the heat, and extend the life span of the product. The LED life span> 50, 000 hours. The color is even andsoft, without any light dot or light spot, 180 degree big view angle.
3. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.
Parameters
| Part number |
WES-FCOB-320 |
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter |
480 pcs/meter |
| PCB width |
8mm/10mm |
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K |
2700K 3000K |
| RA |
90 (80 optional) |
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) |
6mm 12V(6W) 24V(8W) |
|
Cutable Length |
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 |
Features
High Brightness LED Light Source Light even and soft and continuous glow effect, Color is Rich, High efficiency and energy saving, low power consumption, low fever, safety saving electricity (save more than 90% than glass neon lights) convenient transportation, not easy broken, High flexible easy to bend, convenient installation modeling, impact resistance Maintenance costs low.
Application
Architectural COB led strip light
Furniture & cabinet COB led strip light
kitchen & bedroom & bathroom COB led strip light
Holtel renovation COB led strip light
Club & KTV bar COB led strip light
retail store,shopfitting COB led strip light
shopping mall, commercial llighting COB led strip light
