Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Item Type: |
COB LED Strip |
Lamp Luminous Flux(lm): |
100 Lm/W |
Working Lifetime(hour): |
50000 Hours |
Led Quantity: |
320LEDs |
Lamp Power: |
14W/M |
Working Temperature(℃): |
-20 - 40 |
Item Type: |
COB LED Strip |
Lamp Luminous Flux(lm): |
100 Lm/W |
Working Lifetime(hour): |
50000 Hours |
Led Quantity: |
320LEDs |
Lamp Power: |
14W/M |
Working Temperature(℃): |
-20 - 40 |
White High Efficiency CRI90 Flexible COB LED Strip 320LEDs Per Meter
Warm White COB LED Flexible Strip Light 320LEDs per Meter
Top quality COB LED Strip Light Introduction
9*22mil big chips is used that could achieve 100LM/W high efficiency at CRI90.
Thick phosphor glue is used that improves the light quality to more than smooth and SDCM<3.
2OZ thickness with solid copper is used that makes the strip light is with good heat dissipation and also low voltage dropping.
3 years warranty is offered and could extended to 5 years as requested.
Parameters
| Part number |
WES-FCOB-320 |
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter |
480 pcs/meter |
| PCB width |
8mm/10mm |
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K |
2700K 3000K |
| RA |
90 (80 optional) |
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) |
6mm 12V(6W) 24V(8W) |
|
Cutable Length |
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 |
Features
Our Flexible COB LED Strip Light series creates a seamless line of light from start to finish. The all-new strip design uses flip-chip LEDs to eliminate visible LED dots (hot spots). The all-new chip-on-board technology not only improves light quality but also improves the thermal management and flexibility of the strip. The smaller LEDs can be packed tighter and weigh much less than the bulkier 5050 LEDs, creating a strip that can work around the needs of your application. The spotless output makes the COB LED strips ideal for narrow applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.
Application
The COB flexible LED strip that we manufacture is highly versatile and can be used in various different industries.

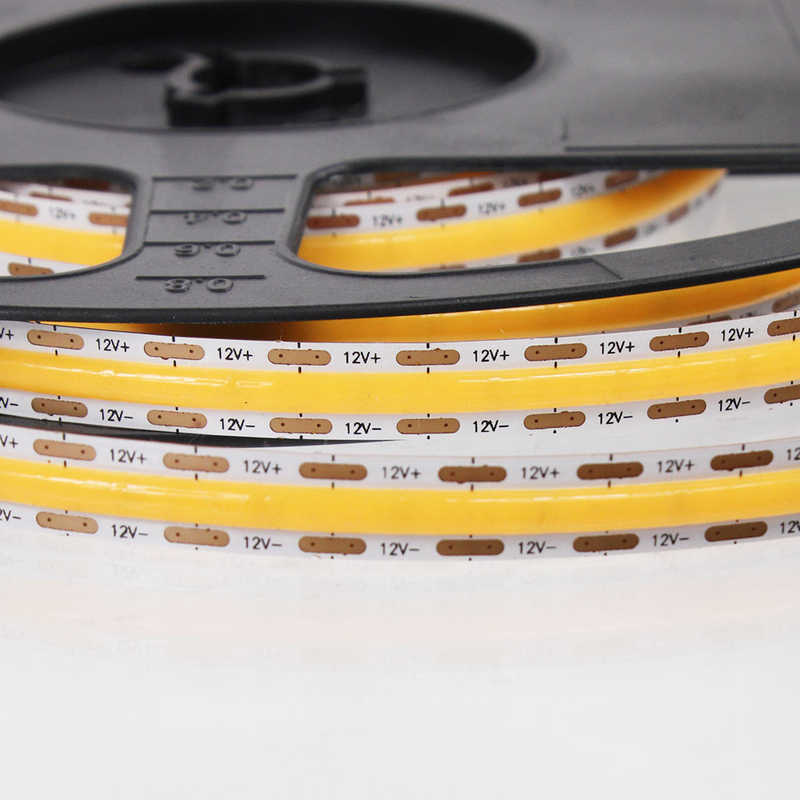

Product Photo
