Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-630
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Item: |
COB LED Streifen |
Wattage: |
15W |
Emitting Color: |
RGB |
Ip Rating: |
IP20 |
Pcb Color: |
White PCB-double |
Working Lifetime(hour): |
50000 Hours |
Item: |
COB LED Streifen |
Wattage: |
15W |
Emitting Color: |
RGB |
Ip Rating: |
IP20 |
Pcb Color: |
White PCB-double |
Working Lifetime(hour): |
50000 Hours |

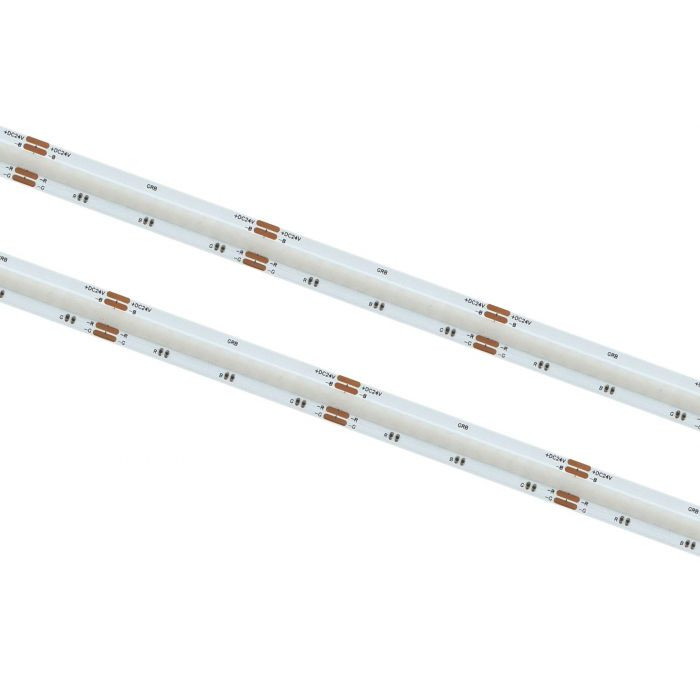

10mm Seamless RGB COB LED Streifen 15W (24V) 5M
Product Introduction for RGB COB LED strip
Our Flexible COB LED Strip Light series creates a seamless line of light from start to finish. The all new strip design uses flip chip LEDs to eliminate visible LED dots (hot spots). The all new chip-on-board technology not only improves light quality, but also improves thermal management and flexibility of the strip. The smaller LEDs can be packed tighter and weigh much less than the bulkier 5050 LEDs, creating a strip that can work around your applications needs. The spotless output make the COB LED strips ideal for narrow applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.
Parameters for pixel rgb cob led strip
|
Part number |
WES-FCOB-630 |
|
LED Quantity |
630 pcs/meter |
|
PCB width |
10mm |
|
Color |
RGB |
|
Luminous Flux |
2500~2800 mcd |
|
Wattage |
12V(15W) 24V(18W) |
|
Cutable Length |
12V(14.29mm) 24V(33.33mm) |
|
IP Rate |
IP20/IP65/IP67 |
Advantages:
1. 9*22mil big chips is used that could achieve 100LM/W high efficiency at CRI90.
2. Thick phosphor glue is used that improves the light quality to more than smooth and SDCM<3.
3. 2OZ thickness with solid copper is used that makes the strip light is with good heat dissipation and also low voltage dropping.
4. 3 years warranty is offered and could extended to 5 years as requested.
Application:
This tape light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.
