Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-480/528
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
LED Light Source: |
Chip On Board |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Viewing Angle(°): |
180 Degree |
Control Mode: |
Remote Control, Switch Control |
Operating Temperature(℃): |
-20 - 45 |
Warranty: |
3 Years |
LED Light Source: |
Chip On Board |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Viewing Angle(°): |
180 Degree |
Control Mode: |
Remote Control, Switch Control |
Operating Temperature(℃): |
-20 - 45 |
Warranty: |
3 Years |

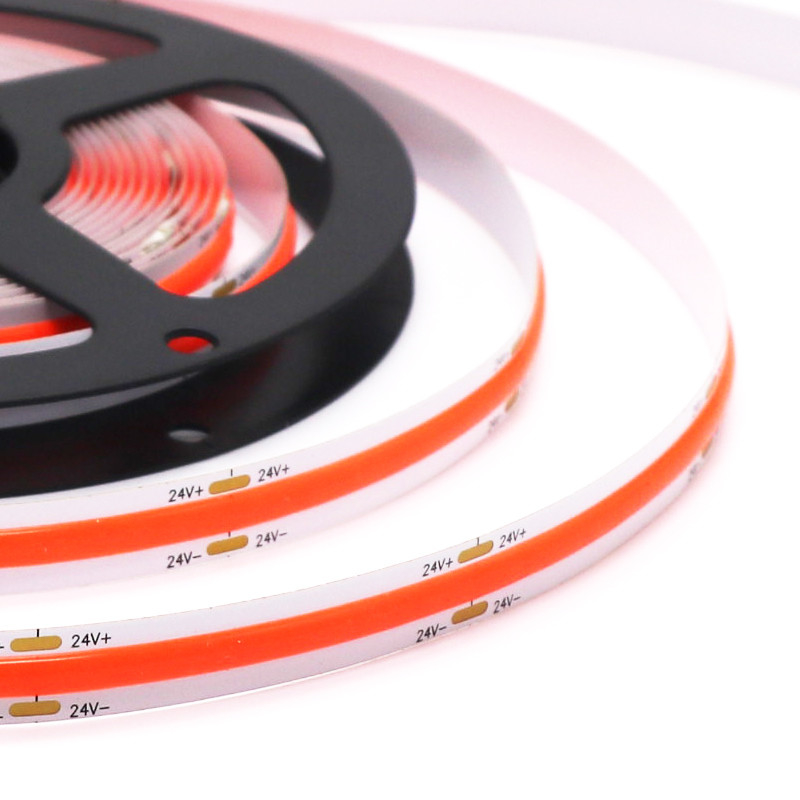

Weersom High brightness Cob LED Strip Red Green Blue Custom color
Product Introduction:
COB led strip is a high density led strip, use chip-on-board packaging technology. Our company has leading technology for COB LED strips, our full series COB strip including 320LED, 384LED, 480LED, 504LED, 528LED COB, 576LED CCT, 630LED RGB color, etc. It has a wide 180 degree beam angle, high density LED with no dark area, high color efficiency, and uniform illumination. Exept for regular 2700K, 3000K, 4000K, 6000K CCT, we can also help to make custom colors, such as Red, Green, Blue, Yellow...We can customzie your own information on the product.
Parameters:
| Part number |
WES-FCOB-320
|
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter
|
480 pcs/meter |
| PCB width |
8mm/10mm
|
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM
|
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
| RA |
90 (80 optional)
|
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
|
Cutable Length
|
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67
|
IP20/IP65/IP67 |
Advantages:
1. Reliability
COB strip adopts the flip chip and flip packaging technology, better reliability
2. Better color uniform
One time silicone molding process, which can meet SDCM 3
3. Better products design
Thinner, only 2mm thickness, which is more convenient for product design
4. Easy installation
It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly
Application:
Home decoration (cabinet & furniture lighting, ladder lighting, hall aisle lighting, edge decoration);Path indication and exterior wall contour decoration, billboard backlight, advertising signs, etc; Buildings, pavilions, bridges, parks, squares and other contours;Holiday decoration, event venue scenery, exhibition venue decoration, showcase, window, props and other application decorative lighting
