Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-630
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Product: |
Dotless COB Strip Light |
Emitting Color: |
RGB Color |
Input Voltage(v): |
DC12V |
Certification: |
CE, ROHS |
IP Rate: |
IP20/IP65/IP67 |
Warranty: |
3 Years |
Product: |
Dotless COB Strip Light |
Emitting Color: |
RGB Color |
Input Voltage(v): |
DC12V |
Certification: |
CE, ROHS |
IP Rate: |
IP20/IP65/IP67 |
Warranty: |
3 Years |

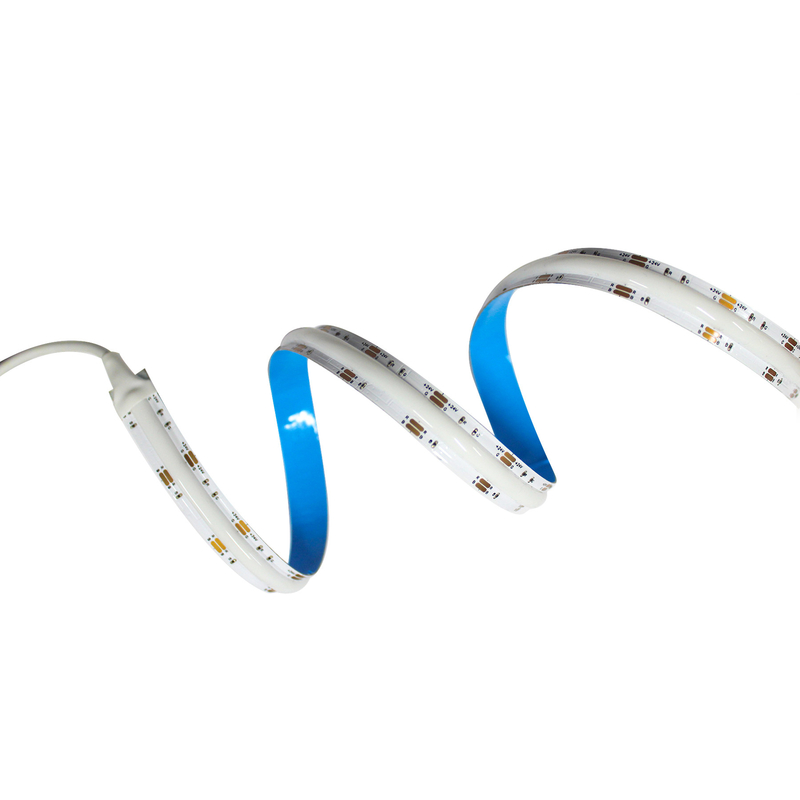

IP20 IP65 IP67 COB LED Dotless Strip Light Apply Double Layers FPC
Dotless COB Strip 630LED Rgb Color COB LED Lights
Product Introduction for RGB COB LED strip
1. Flexible COB led strip is a new design type of LED strip products. As the led strip is by SMD LED+ FPC, so there's some light dot or spot. Now this COB strip is take Flip chip technology, to bond the chip directly on the FPC board, and then cover up with phosphor & silicone gel directly.
2. We apply double layers FPC, the material of FPC is pure copper, so even we use high density leds on the FPC, it still can help to release the heat, and extend the life span of the product. The LED life span> 50, 000 hours. The color is even andsoft, without any light dot or light spot, 180 degree big view angle.
3. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.
Parameters for pixel rgb cob led strip
|
Part number |
WES-FCOB-630 |
|
LED Quantity |
630 pcs/meter |
|
PCB width |
10mm |
|
Color |
RGB |
|
Luminous Flux |
2500~2800 mcd |
|
Wattage |
12V(15W) 24V(18W) |
|
Cutable Length |
12V(14.29mm) 24V(33.33mm) |
|
IP Rate |
IP20/IP65/IP67 |
Advantages:
Our Flexible COB LED Strip Light series creates a seamless line of light from start to finish. The all-new strip design uses flip-chip LEDs to eliminate visible LED dots (hot spots). The all-new chip-on-board technology not only improves light quality but also improves the thermal management and flexibility of the strip. The smaller LEDs can be packed tighter and weigh much less than the bulkier 5050 LEDs, creating a strip that can work around the needs of your application. The spotless output makes the COB LED strips ideal for narrow applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.
Application:
1. Ideal for decoration of building outlines, landscape illumination, amusement themes,
2. Holiday light sculpture, decorative figure, active signs, displays, shop windows
3. And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.
