Home > products > Flexible COB LED Strip > Bendable Tape Lights 24V 504LEDs/M Uniform Glow 5000K Daylight

Bendable Tape Lights 24V 504LEDs/M Uniform Glow 5000K Daylight

Product Details

Place of Origin: Guangdong, China

Brand Name: WEERSOM

Certification: CE, ROHS

Model Number: WES-FCOB-504

Payment & Shipping Terms

Minimum Order Quantity: 5 meters

Price: Negotiable

Packaging Details: 5 meters/reel, Antistactics bag

Delivery Time: 8-10 work days

Payment Terms: L/C, T/T

Supply Ability: 800,000 meters per month

Get Best Price
Highlight:

504LEDs/M Bendable Led Strip

,

Bendable Tape Lights 504LEDs/M

,

5000K Daylight Bendable Led Strip

Product:
COB Led Strip
Color Temperature:
5000K
Wattage:
14W/M
IP Rating:
IP20
Warranty:
5 Years Warranty
Cri:
90
Product:
COB Led Strip
Color Temperature:
5000K
Wattage:
14W/M
IP Rating:
IP20
Warranty:
5 Years Warranty
Cri:
90
Bendable Tape Lights 24V 504LEDs/M Uniform Glow 5000K Daylight

Bendable Tape Lights, 24V 504LEDs/M Uniform Glow, 5000K Daylight


Product Introduction for 5000K Daylight COB led strip


Flexible COB LED Strip Light is a new design type of led strip products.

As the led strip is by SMD LED+ FPC, so there must with some light dot or spot.

Now this COB strip is take the flip chip technical to bonding the chip directly on the FFR board and then cover it by phosphor & silicone gel directly, so the color is even and without any light dot or light spot, 180 degree big view angle.

Available in DC12V/DC24V, single/ dual white color, can meet your needs for Room TV backlight decoration.



Parameters



Part number

WES-FCOB-320

WES-FCOB-480
LED Quantity

320 pcs/meter

480 pcs/meter
PCB width

8mm/10mm

6mm/8mm/10mm
Color temperature (CCT)

2700K 3000K
4000K 6000K
Red, Green, Blue, OEM

2700K 3000K
4000K 6000K
Red, Green, Blue, OEM

RA

 90 (80 optional)

90 (80 optional)
Wattage

8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(10W)

6mm 12V(6W) 24V(8W)
8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(14W)

Cutable Length

50mm

50mm
IP Rate

 IP20/IP65/IP67

IP20/IP65/IP67


Features



Continuous, dotless-effect, self-adhesive LED strip. Slim, discreet design, ideal for a wide variety of applications, especially for installations where it is appropriate for individual diodes to be concealed. Cut to size.


Application



•Commercial and residential decoration

•Under counter lighting

•Media illumination

•Large area backlighting

•Small to medium channel letters

•Point-of-sale displays

•Neon replacement



Product Photo

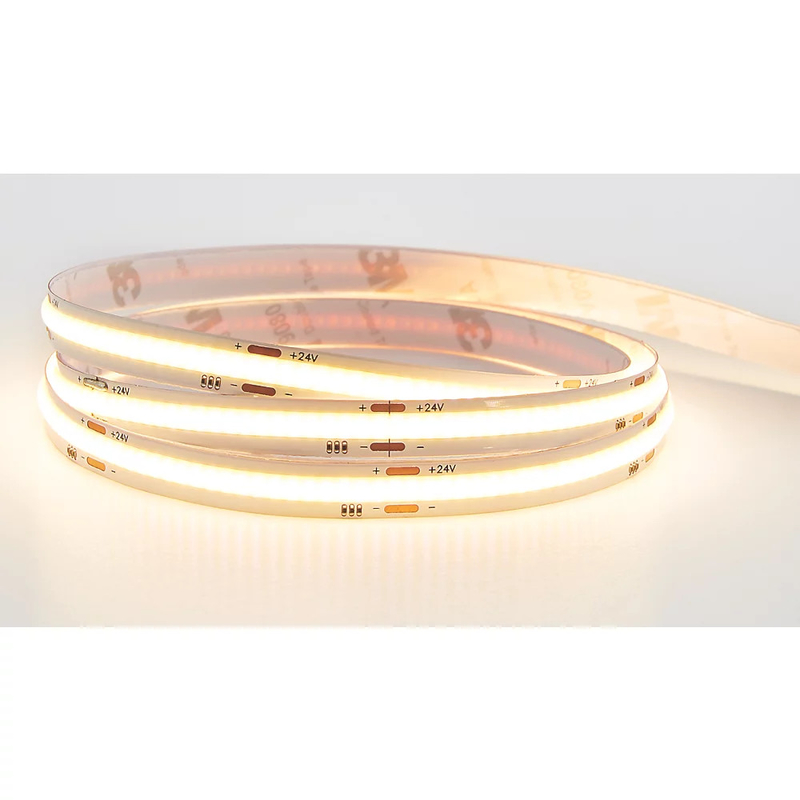

Bendable Tape Lights 24V 504LEDs/M Uniform Glow 5000K Daylight 0
