Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Product: |
COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Wattage: |
14W |
IP Rating: |
IP20,IP65, IP67 |
Usage: |
Indoor/Outdoor Decoration |
Warranty: |
3 Years |
Product: |
COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Wattage: |
14W |
IP Rating: |
IP20,IP65, IP67 |
Usage: |
Indoor/Outdoor Decoration |
Warranty: |
3 Years |

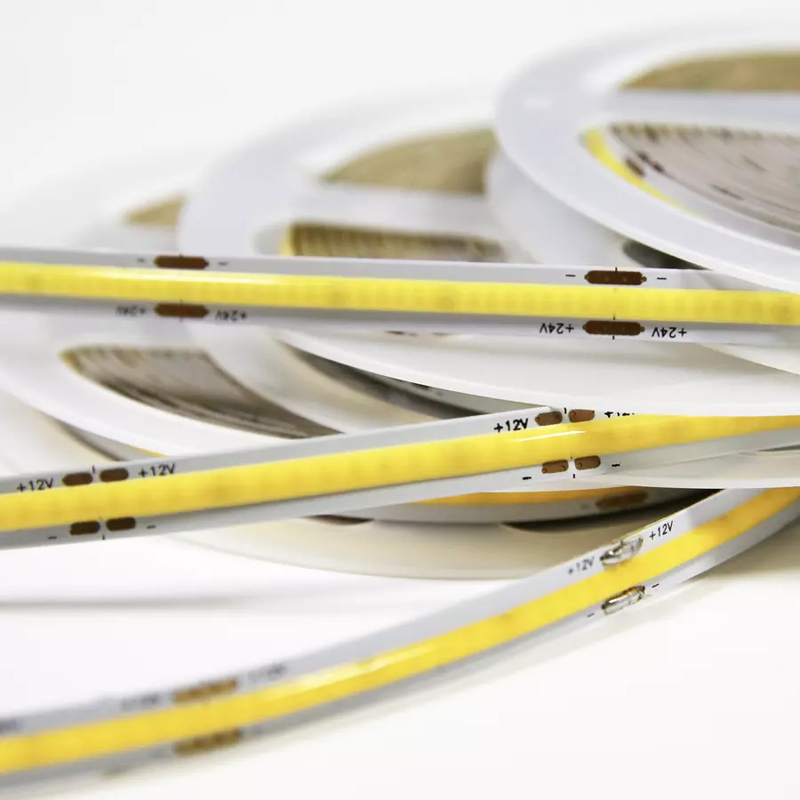

180 Angle 3 Years Warranty Flexible 24V 12V 320led 480led Led Cob Strip Light
Product Introduction for 320led COB led strip
Flexible COB LED Strip Light is a new design type of led strip products.
As the led strip is by SMD LED+ FPC, so there must with some light dot or spot.
Now this COB strip is take the flip chip technical to bonding the chip directly on the FFR board and then cover it by phosphor & silicone gel directly, so the color is even and without any light dot or light spot, 180 degree big view angle.
Available in DC12V/DC24V, 2700+6500K dual white color, can meet your needs for Room TV backlight decoration.
Parameters of 320led COB led strip
| Part number |
WES-FCOB-320 |
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter |
480 pcs/meter |
| PCB width |
8mm/10mm |
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K |
2700K 3000K |
| RA |
90 (80 optional) |
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) |
6mm 12V(6W) 24V(8W) |
|
Cutable Length |
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 |
Advantages of 320led COB led strip
1.Widely used, easy to install and maintain, long service life
2.Very flexible, easy to bend into different shapes, various white light options
3.COB Design, with more chips on PCB, more even light.
4.Up to 480 chips on 1 meter PCB, only 2.0mm space between chips.
5.Cuttable at every 50mm length. Form a circuit without affecting other circuites.
6.Efficiency up to 100Lm/W.
7.Ra 90 also available.
8. Can be customized according to customer requirements
Application of 320led COB led strip
•Commercial and residential decoration
•Under counter lighting
•Media illumination
•Large area backlighting
•Small to medium channel letters
•Point-of-sale displays
•Neon replacement
