Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Product Name: |
COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Wattage: |
12~14W |
Luminous Intensity: |
100~110lm/w |
IP Rating: |
IP20,IP65, IP67, IP68 |
Usage: |
Indoor/Outdoor Decoration |
Product Name: |
COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Wattage: |
12~14W |
Luminous Intensity: |
100~110lm/w |
IP Rating: |
IP20,IP65, IP67, IP68 |
Usage: |
Indoor/Outdoor Decoration |
Multi Colors 12V 24V 320Led COB LED Strip For Indoor Outdoor Decoration
Product Introduction for 320 COB led strip
COB led strip is a high density led strip, use chip-on-board packaging technology. Our company has leading technology for COB LED strips, our full series COB strip including 320LED, 384LED, 480LED, 504LED, 528LED COB, 576LED CCT, 630LED RGB color, etc. It has a wide 180 degree beam angle, high density LED with no dark area, high color efficiency, and uniform illumination. Exept for regular 2700K, 3000K, 4000K, 6000K CCT, we can also help to make custom colors, such as Red, Green, Blue, Yellow...We can customzie your own information on the product.
Parameters of 320 COB led strip
| Part number |
WES-FCOB-320 |
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter |
480 pcs/meter |
| PCB width |
8mm/10mm |
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K |
2700K 3000K |
| RA |
90 (80 optional) |
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) |
6mm 12V(6W) 24V(8W) |
|
Cutable Length |
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 |
Advantages of 320 COB led strip
1.Widely used, easy to install and maintain, long service life
2.Very flexible, easy to bend into different shapes, various white light options
3.COB Design, with more chips on PCB, more even light.
4.Up to 480 chips on 1 meter PCB, only 2.0mm space between chips.
5.Cuttable at every 50mm length. Form a circuit without affecting other circuites.
6.Efficiency up to 100Lm/W.
7.Ra 90 also available.
8. Can be customized according to customer requirements
Application of 320 COB led strip
•Commercial and residential decoration
•Under counter lighting
•Media illumination
•Large area backlighting
•Small to medium channel letters
•Point-of-sale displays
•Neon replacement

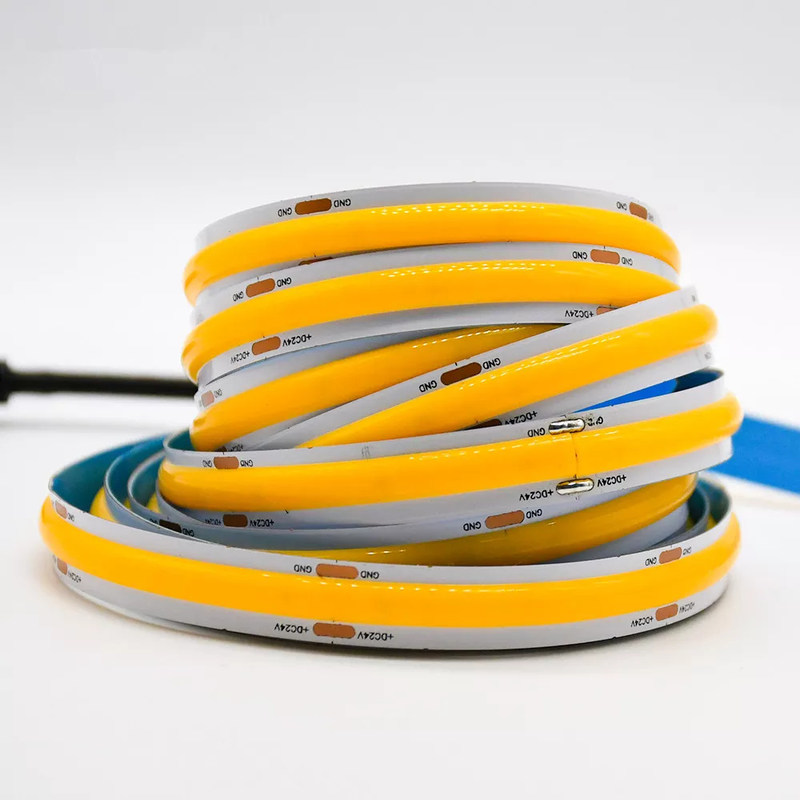

Product Photo:
