Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
LED Qty: |
320 Pcs LED/meter |
Pcb Color: |
White PCB-double |
Usage: |
House Decoration |
Luminous Flux(lm): |
100lm/W |
Operating Temperature(℃): |
-20 - +50 |
Power Dissipation: |
15 |
LED Qty: |
320 Pcs LED/meter |
Pcb Color: |
White PCB-double |
Usage: |
House Decoration |
Luminous Flux(lm): |
100lm/W |
Operating Temperature(℃): |
-20 - +50 |
Power Dissipation: |
15 |

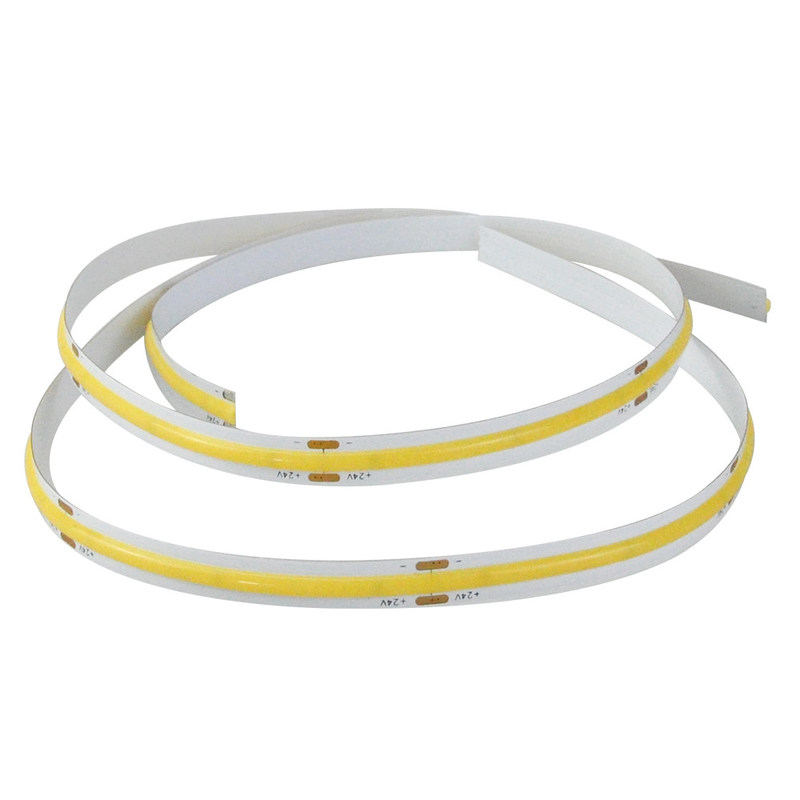

Dimming 4000K Nature White Flexible COB Strip for Kitchen House Decor
Product introduction
COB led strip is using chip-on-board packaging technology. Available in 320led/m, 480led/m, 528led/m 640led/m and more...It is high density led strip, the distance between each led is very small, which makes the COB led strip illumination very soft, and shows no dark area. The led chips are assembled directly on double layers PCB, and then cover up with high quality phosphors and silicon, without any wires and LED brackets, ensures low voltage drop and good heat dissipation. It can be bent freely. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.
Datasheet
| Part number |
WES-FCOB-320 |
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter |
480 pcs/meter |
| PCB width |
8mm/10mm |
6mm/8mm/10mm |
| Color temperature (CCT) |
|
2700K 3000K |
| RA |
|
90 (80 optional) |
| Wattage |
|
6mm 12V(6W) 24V(8W) |
|
|
50mm | 50mm |
| IP Rate |
|
P20/IP65/IP67 |
Advantages
Application
1. Architectural decoration Lighting
2. Backing lighting for signage letters
3. Decoration lighting for under water project
4. Archway /Canopy & Bridge Edge Lighting
5. Auditorium walkway lighting
6. Amusement park / Theater lighting
7. Stairway Accent Lighitng
8. Channel letters lighting
9. Furniture Decoration Lighting
10. Cove Lighting etc.
Custom Solution
Custom LED Strip
Not only offer standard products bu with customized package, specification, length...
Custom Aluminum Profile
Factory finished aluminum profile and cover options are cuttable in specified length according to custom requirements.
Custom Assemble Solutions
Supply LED Strip & aluminum profile asssembling service and simplify the installation process for users. Personalized length and color temerature is avaiable.
