Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-480
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Product: |
COB Led Strip |
LED Qty: |
528 Pcs LED/meter |
Ip Rating: |
IP20 |
Pcb Color: |
White PCB |
Usage: |
Home Lighting |
Luminous Flux(lm): |
100-110lm/W |
Product: |
COB Led Strip |
LED Qty: |
528 Pcs LED/meter |
Ip Rating: |
IP20 |
Pcb Color: |
White PCB |
Usage: |
Home Lighting |
Luminous Flux(lm): |
100-110lm/W |

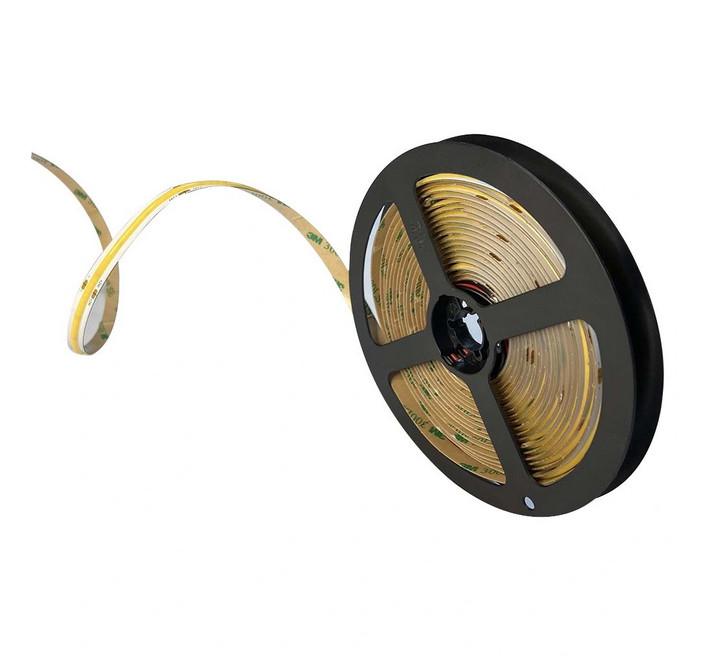

3 Years Warranty 528LEDs/M 24VDC 6500K Flexible White COB LED Strip
Product introduction
1. Commercial Led Strip:
The COB LED strip light uses 480 LED chips on 1 meter which creates brighter and smoother lighting. 16.4ft led strip line emits 5500 Lumens of 3000K light. Its stable and reliable, prefect for various commercial projects.
2. Cuttable & Flexible:
The cob led strip can be bent at any angle. Cuttable and linkable allows you to reach the length and shape you needs, which suitable for Shopping mall, Living room, Kitchen, Library, Office and other large space. NO glare, Soft light, Safe to eye.
3. Linear Lighting:
Uniform distribution of linear lighting, 180 degrees beam angle design, NO MORE worries about dark spot. The led light strip is also compatible with conventional strip dimmers for dimming(NOTE: The voltage and power should be matched--DC24V/50W)
4. Easily Installation:
The led 24V strip lightcomes with professional strong 3M adhesive backing and the 8mm width, makes it is easy to install in narrow places. WARNING: DO NOT ROLL UP WHEN LIGHT UP!
5. Reliable & Guarantee:
CE& RoHS certificated' Over 50,000 hours rated, and we provide 3 years worry-free warranty.
Datasheet
|
Part number |
WES-FCOB-320 |
WES-FCOB-480 |
|
LED Quantity |
320 pcs/meter |
480 pcs/meter |
|
PCB width |
8mm/10mm |
6mm/8mm/10mm |
|
Color temperature (CCT) |
2700K 3000K |
2700K 3000K |
|
RA |
90 (80 optional) |
90 (80 optional) |
|
Wattage |
8mm 12V(8W) 24V(10W) |
6mm 12V(6W) 24V(8W) |
|
Cutable Length |
50mm |
50mm |
|
IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 |
| Part number | WES-FCOB-608 |
| LED Quantity | 608 pcs/meter |
| PCB width | 10mm |
| Color temperature (CCT) | 2700K+6500K |
| RA | >90 |
| Wattage | 8W~16W |
| Cutable Length | 24V(26.32mm) |
| IP Rate | IP20/IP65 |
Advantages
Dots-free with uniform lighting
Unlimited length
New technology, high density, dot-free, Ra>80/90.
Efficacy Lumen upto 100lm/watt
Cuttable and soderless connection with crystal connector
Application
1. Architectural decoration Lighting
2. Backing lighting for signage letters
3. Decoration lighting for under water project
4. Archway /Canopy & Bridge Edge Lighting
5. Auditorium walkway lighting
6. Amusement park / Theater lighting
7. Stairway Accent Lighitng
8. Channel letters lighting
9. Furniture Decoration Lighting
10. Cove Lighting etc.
Custom Solution
Custom LED Strip
Not only offer standard products bu with customized package, specification, length...
Custom Aluminum Profile
Factory finished aluminum profile and cover options are cuttable in specified length according to custom requirements.
Custom Assemble Solutions
Supply LED Strip & aluminum profile asssembling service and simplify the installation process for users. Personalized length and color temerature is avaiable.
