Home > products > Flexible COB LED Strip > 180degree Beam Angle Cob Led Flexible Strip 480leds/M With No Light Spots

180degree Beam Angle Cob Led Flexible Strip 480leds/M With No Light Spots

Product Details

Place of Origin: Guangdong, China

Brand Name: WEERSOM

Certification: CE, ROHS

Model Number: WES-FCOB-480

Payment & Shipping Terms

Minimum Order Quantity: 5 meters

Price: Negotiable

Packaging Details: 5 meters/reel, Antistactics bag

Delivery Time: 8-10 work days

Payment Terms: L/C, T/T

Supply Ability: 800,000 meters per month

Get Best Price
Highlight:
Product:
FCOB Led Strip
Color Temperature:
2700k, 3000K, 4000K, 6000K
Control Mode:
Remote/Swich Control
Power:
11W/M
Luminous Intensity:
100lm/w
Viewing Angle(°):
180
Product:
FCOB Led Strip
Color Temperature:
2700k, 3000K, 4000K, 6000K
Control Mode:
Remote/Swich Control
Power:
11W/M
Luminous Intensity:
100lm/w
Viewing Angle(°):
180
180degree Beam Angle Cob Led Flexible Strip 480leds/M With No Light Spots

180degree Beam Angle Cob Led Flexible Strip 480leds/M With No Light Spots

Product Introduction:



1. Flexible COB led strip is a new design type of LED strip products. As the led strip is by SMD LED+ FPC, so there's some light dot or spot. Now this COB strip is take Flip chip technology, to bond the chip directly on the FPC board, and then cover up with phosphor & silicone gel directly.
2. We apply double layers FPC, the material of FPC is pure copper, so even we use high density leds on the FPC, it still can help to release the heat, and extend the life span of the product. The LED life span> 50, 000 hours. The color is even andsoft, without any light dot or light spot, 180 degree big view angle.
3. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.


Parameters:



Part number

WES-FCOB-320


WES-FCOB-480
LED Quantity

320 pcs/meter


480 pcs/meter
PCB width

8mm/10mm


6mm/8mm/10mm
Color temperature (CCT)

 2700K 3000K
4000K 6000K
Red, Green, Blue, OEM



2700K 3000K
4000K 6000K
Red, Green, Blue, OEM

RA

 90 (80 optional)


90 (80 optional)
Wattage

 8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(10W)

6mm 12V(6W) 24V(8W)
8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(14W)


Cutable Length



50mm

50mm
IP Rate


IP20/IP65/IP67



IP20/IP65/IP67



Advantages:



1. Reliability

COB strip adopts the flip chip and flip packaging technology, better reliability

2. Better color uniform

One time silicone molding process, which can meet SDCM 3

3. Better products design

Thinner, only 2mm thickness, which is more convenient for product design

4. Easy installation

It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly


Application:



  1. Home decoration (cabinet & furniture lighting, ladder lighting, hall aisle lighting, edge decoration);
  2. Path indication and exterior wall contour decoration, billboard backlight, advertising signs, etc;
  3. Buildings, buildings, pavilions, bridges, parks, squares and other contours, building lighting decoration, various indoor and outdoor lighting projects;
  4. Holiday decoration, event venue scenery, exhibition venue decoration, exhibition hall decoration, showcase, window, props and other application decorative lighting

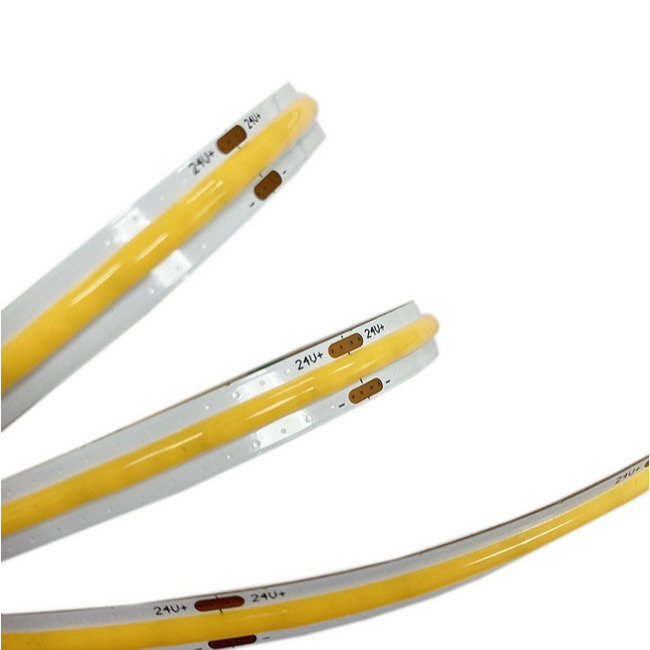

Product Photo:



180degree Beam Angle Cob Led Flexible Strip 480leds/M With No Light Spots 0
