Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320/480
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Product Name: |
FCOB/ COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, OEM |
Lifespan: |
>50000 Hours |
Operating Temperature(℃): |
-20 - 45℃ |
Control Mode: |
Remote Control |
Power: |
50W |
Product Name: |
FCOB/ COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, OEM |
Lifespan: |
>50000 Hours |
Operating Temperature(℃): |
-20 - 45℃ |
Control Mode: |
Remote Control |
Power: |
50W |

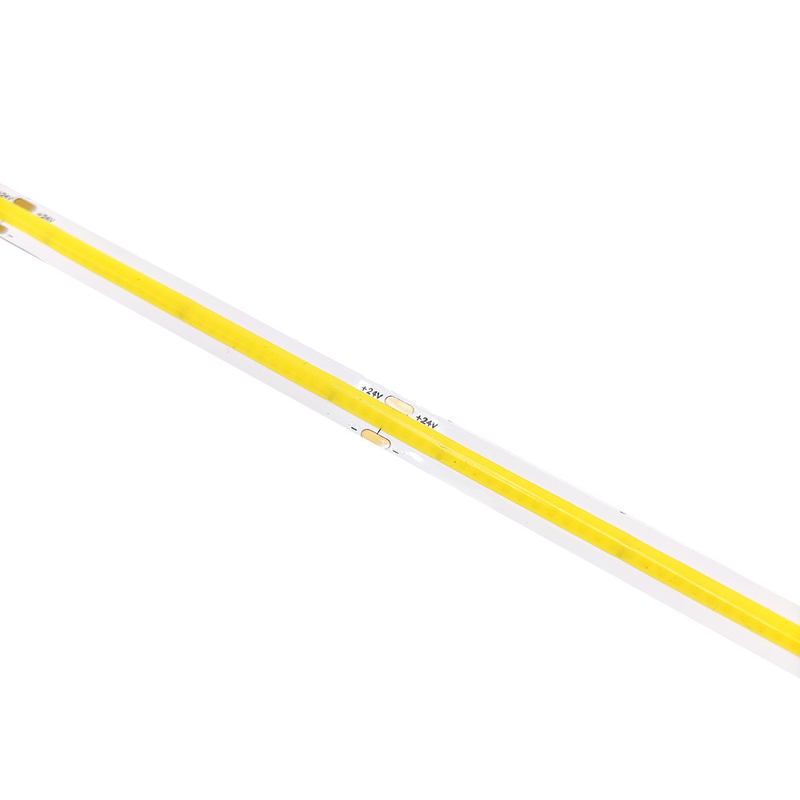

No Soldering Joint 10m / Reel Cob Led Strip Light 24v 480led
Product Introduction:
1. Flexible COB led strip is a new design type of LED strip products. As the led strip is by SMD LED+ FPC, so there's some light dot or spot. Now this COB strip is take Flip chip technology, to bond the chip directly on the FPC board, and then cover up with phosphor & silicone gel directly.
2. We apply double layers FPC, the material of FPC is pure copper, so even we use high density leds on the FPC, it still can help to release the heat, and extend the life span of the product. The LED life span> 50, 000 hours. The color is even andsoft, without any light dot or light spot, 180 degree big view angle.
3. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.
Parameters:
Part number |
WES-FCOB-320
|
WES-FCOB-480 |
LED Quantity |
320 pcs/meter
|
480 pcs/meter |
PCB width |
8mm/10mm
|
6mm/8mm/10mm |
Color temperature (CCT) |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM
|
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
RA |
90 (80 optional)
|
90 (80 optional) |
Wattage |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
Cutable Length
|
50mm |
50mm |
IP Rate |
IP20/IP65/IP67
|
IP20/IP65/IP67 |
Advantages:
COB LED strip lights to adopt real 2oz copper double-sided PCB board, balancing the flexibility, corrosion resistance, good heat dissipation, and durability. High Lumen LED Light Strip. (100LM/W),Brightly Light CRI(90+),DC24V low voltage energy saving, warm white 2700K, benefits reflection of true color its light is healthy and bright and soft. the suitable for home and commercial space.
Easy installation: stick the 3M tape on a clean and dry surface, you can cut the strip along the cutting marks extension wire, Cutting Designed Rope Light at every 50MM (1.96 inches) Length, and Re-join. You can use it to DIY Any Own Design.
Application:
Product Photo:
