Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Item: |
FCOB / COB Led Strip |
Voltage: |
DC12V/ 24V |
Luminous Flux(lm): |
1000 |
Viewing Angle(°): |
180° |
Power: |
50W |
Color Rendering Index(ra): |
80,90 |
Item: |
FCOB / COB Led Strip |
Voltage: |
DC12V/ 24V |
Luminous Flux(lm): |
1000 |
Viewing Angle(°): |
180° |
Power: |
50W |
Color Rendering Index(ra): |
80,90 |

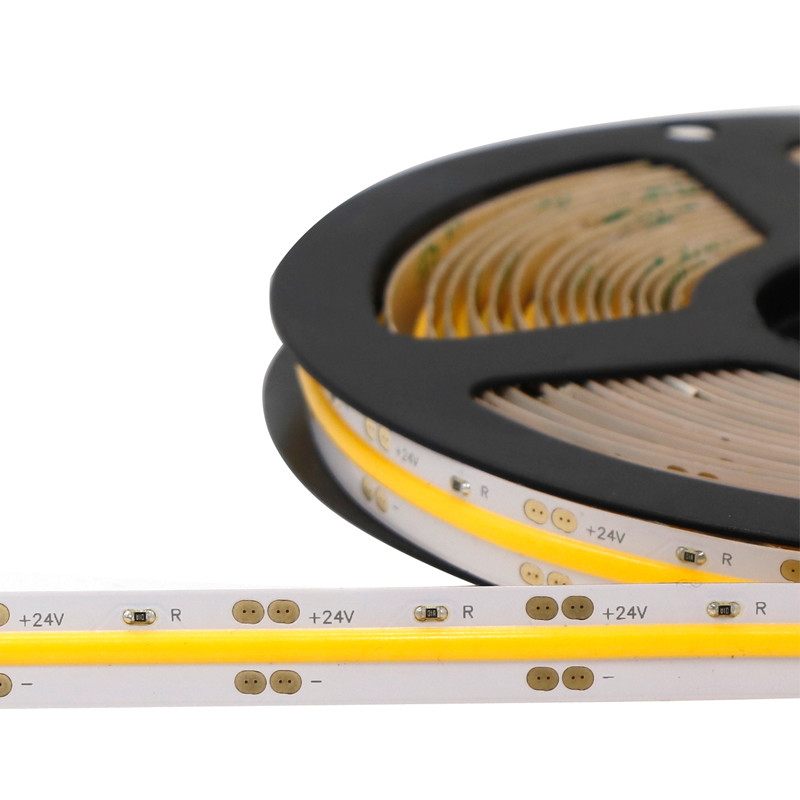

Dimmable Fcob COB Led Strip Warm 3000K 8mm Pcb 5 meter rolls
Product Introduction:
COB led strip is a high density led strip using chip-on-board packaging technology.
1. Adopt Brand Led Chip, high Brightness, Low Light Decay.
2. Lifespan more than 50000 Hours.
3. Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow.
4. All of Materials Are Accord With Rohs Standards.
5. Easy to Install and Preserve; can Be Bent Freely; With 3m Adhesive Tape On the Backside.
6. High Color Efficiency, Uniform Illumination.
7. Beam Angle 180°
8. Color temperature 3000K, 8mm PCB, available in 320led/m and 480led/m
9. Brightness dimmable from 0% to 100%
Parameters:
| Part number |
WES-FCOB-320
|
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter
|
480 pcs/meter |
| PCB width |
8mm/10mm
|
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM
|
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
| RA |
90 (80 optional)
|
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
|
Cutable Length
|
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67
|
IP20/IP65/IP67 |
Advantages:
1. Reliability
COB strip adopts the flip chip and flip packaging technology, better reliability
2. Better color uniform
One time silicone molding process, which can meet SDCM 3
3. Better products design
Thinner, only 2mm thickness, which is more convenient for product design
4. Easy installation
It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly
Application:
1. Architectural decoration Lighting
2. Backing lighting for signage letters
3. Decoration lighting for under water project
4. Archway /Canopy & Bridge Edge Lighting
5. Auditorium walkway lighting
6. Amusement park / Theater lighting
7. Stairway Accent Lighitng
8. Channel letters lighting
9. Furniture Decoration Lighting
10. Cove Lighting etc.
