Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Name: |
FCOB/ COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, OEM |
Voltage: |
DC12V/ 24V |
Control Mode: |
Remote Control, Switch Control |
Certification: |
RoHS,CE |
Luminous Flux(lm): |
1000 |
Name: |
FCOB/ COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, OEM |
Voltage: |
DC12V/ 24V |
Control Mode: |
Remote Control, Switch Control |
Certification: |
RoHS,CE |
Luminous Flux(lm): |
1000 |

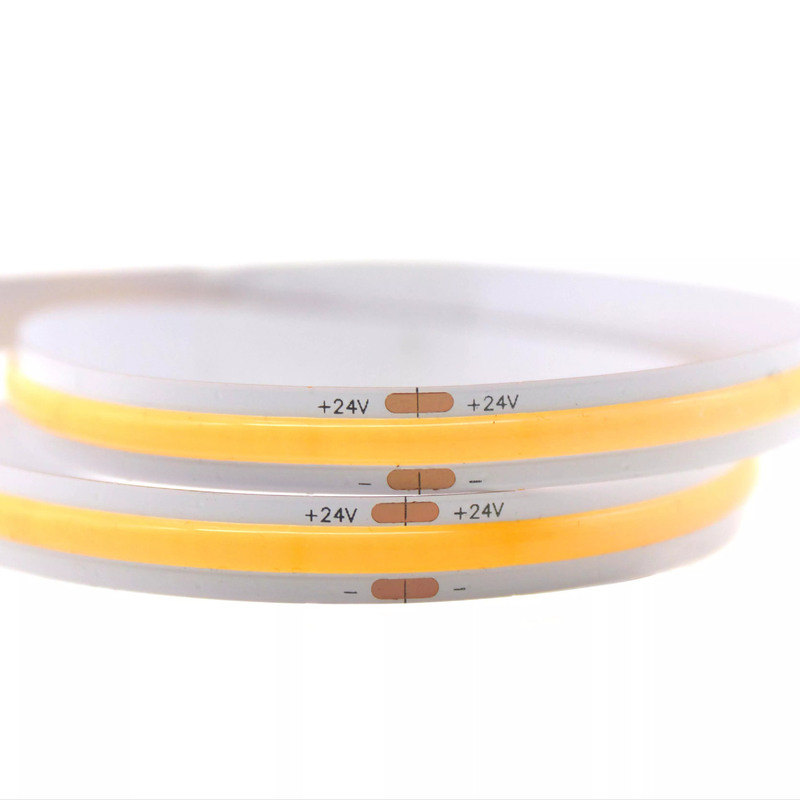

Flip Chip Technology 24v 10w 320leds Daylight COB Led Tape Light
Product Introduction:
1. Flip Cip Technology, Chips On FPC Directly; Beam Angle 180°.
2. High Color Efficiency, Uniform Illumination, No LED spots;
3. Colors available: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. RGB , Dual color...
4. With 3m Adhesive Tape On the Backside, easy to Install and Preserve; can be bent freely; .
5. All of Materials Are Accord With Rohs and CE Standards.
7. Accept OEM for different lengths, PCB width, voltage, power, color and other information
Parameters:
| Part number |
WES-FCOB-320
|
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter
|
480 pcs/meter |
| PCB width |
8mm/10mm
|
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM
|
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
| RA |
90 (80 optional)
|
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
|
Cutable Length
|
50mm | 50mm |
| IP Rate |
IP20/IP65/IP67
|
P20/IP65/IP67 |
Advantages:
1. Reliability
COB strip adopts the flip chip and flip packaging technology, better reliability
2. Better color uniform
One time silicone molding process, which can meet SDCM 3
3. Better products design
Thinner, only 2mm thickness, which is more convenient for product design
4. Easy installation
It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly
Application:
Product Photo:
