Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-480/528
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 800,000 meters per month
Product: |
FCOB/ COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Lifespan: |
50000 Hours |
Operating Temperature(℃): |
-20 - 45 |
Control Mode: |
Remote Control, Switch Control |
Product: |
FCOB/ COB Led Strip |
Color Temperature: |
2700k, 3000K, 4000K, 6000K, Red, Green, Blue, OEM |
Lifespan: |
50000 Hours |
Operating Temperature(℃): |
-20 - 45 |
Control Mode: |
Remote Control, Switch Control |
Heat Resistant Cob Led Strip 480leds 14w/M With 50000 Hours Lifespan
Product Introduction:
1. Flexible COB led strip is a new design type of LED strip products. As the led strip is by SMD LED+ FPC, so there's some light dot or spot. Now this COB strip is take Flip chip technology, to bond the chip directly on the FPC board, and then cover up with phosphor & silicone gel directly.
2. We apply double layers FPC, the material of FPC is pure copper, so even we use high density leds on the FPC, it still can help to release the heat, and extend the life span of the product. The LED life span> 50, 000 hours. The color is even andsoft, without any light dot or light spot, 180 degree big view angle.
3. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.
Parameters:
| Part number |
WES-FCOB-320
|
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter
|
480 pcs/meter |
| PCB width |
8mm/10mm
|
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM
|
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
| RA |
90 (80 optional)
|
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
|
Cutable Length
|
50mm |
50mm |
| IP Rate |
IP20/IP65/IP67
|
P20/IP65/IP67 |
Advantages:
1. Reliability
COB strip adopts the flip chip and flip packaging technology, better reliability
2. Better color uniform
One time silicone molding process, which can meet SDCM 3
3. Better products design
Thinner, only 2mm thickness, which is more convenient for product design
4. Easy installation
It adopts the integrated package technology; the resistor and the flip chip are bonded together, more easily to assembly
Application:
Home decoration (cabinet & furniture lighting, ladder lighting, hall aisle lighting, edge decoration);Path indication and exterior wall contour decoration, billboard backlight, advertising signs, etc; Buildings, pavilions, bridges, parks, squares and other contours;Holiday decoration, event venue scenery, exhibition venue decoration, showcase, window, props and other application decorative lighting

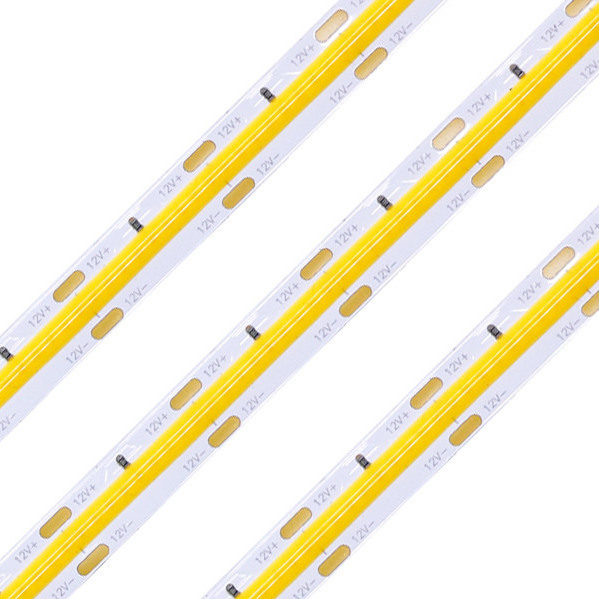

Product Photo:
