Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320/480
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Name: |
FCOB / COB Led Strip |
Working Voltage: |
DC24V |
Emitting Color: |
Warm White,Natural White,Cool White |
Color Rendering Index: |
90, (80 Optional) |
Luminous Intensity: |
90lm/w |
Warranty: |
3 Years |
Name: |
FCOB / COB Led Strip |
Working Voltage: |
DC24V |
Emitting Color: |
Warm White,Natural White,Cool White |
Color Rendering Index: |
90, (80 Optional) |
Luminous Intensity: |
90lm/w |
Warranty: |
3 Years |

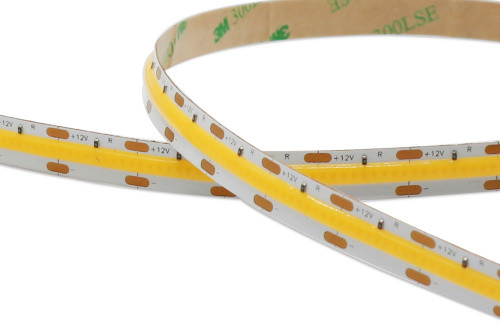

High Density 24v 14w 480led Cob Led Strip Viewing angle 180 degree
Product Introduction:
1. Chip-on-board packaging technology, high density LED strip
2. The distance between each led is very small, which makes the COB led strip illumination very soft, and shows no dark area.
3. Extremely flexible; Cuttable at cutting lines, you can cut it by yourself, and make your own design with the led strip.
4. The led chips are assembled directly on double layers PCB, and then cover up with high quality phosphors and silicon, without any wires and LED brackets, ensures low voltage drop and good heat dissipation.
5.With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve.
6. All of materials are accord with RoHS and CE standards.
7. Accept OEM for different led quantity, color, PCB and other information.
Parameters:
|
Part number |
WES-FCOB-320
|
WES-FCOB-480 |
|
LED Quantity |
320 pcs/meter
|
480 pcs/meter |
|
PCB width |
6mm/8mm/10mm
|
8mm/10mm |
|
Color temperature (CCT) |
2700K 3000K 4000K 6000K
|
2700K 3000K 4000K 6000K |
|
RA |
90
|
90 |
|
Wattage |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
|
Cutable Length |
50mm |
50mm |
|
IP Rate |
IP20/IP65/IP67
|
IP20/IP65/IP67 |
Advantages:
1. Full series of COB led strips, including 320led/360led/378led/480led/504led/528led/576led/630led, CCT , RGB and RGBW…
2. Cuztomization service, we can customize different length, colors, PCB, and package according to customers’ requirements.
3. As original manufacturer, we can offer high quality products and better price
Application:
Home decoration (cabinet & furniture lighting, ladder lighting, hall aisle lighting, edge decoration);
Path indication and exterior wall contour decoration, billboard backlight, advertising signs, etc;
Buildings, buildings, pavilions, bridges, parks, squares and other contours, building lighting decoration, various indoor and outdoor lighting projects;
Holiday decoration, event venue scenery, exhibition venue decoration, exhibition hall decoration, showcase, window, props and other application decorative lighting;
Decoration and lighting of hotels, bars, KTV, nightclubs and other high-end entertainment places
