Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-608
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Packaging Details: 5 meters/reel, antistactics bag, 500 meters/carton, carton size: 500*220*260mm
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Product: |
Cct Cob Strip |
LED Quantity: |
608 Pcs |
Power Per Meter: |
16W |
Color: |
Warm White+Cold White |
Input Voltage: |
DC12V |
Warranty: |
3 Years |
Product: |
Cct Cob Strip |
LED Quantity: |
608 Pcs |
Power Per Meter: |
16W |
Color: |
Warm White+Cold White |
Input Voltage: |
DC12V |
Warranty: |
3 Years |

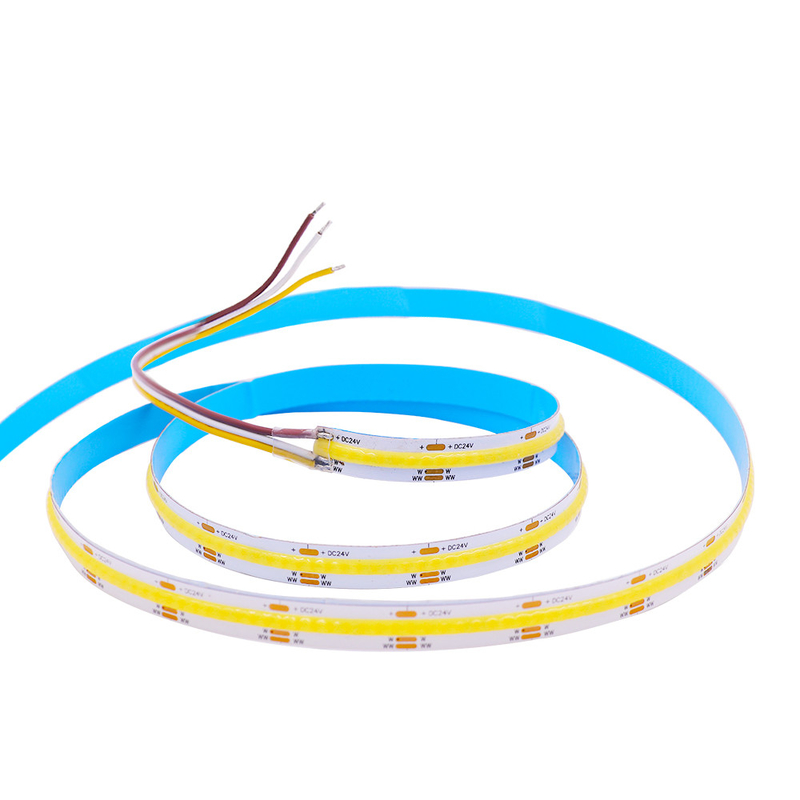

COB Tape Lights RA90 Warm White / Cool White Linear Dimmable LED Band
Specification
Input Voltage: DC12V/24V
Wattage: 14W/M
FPCB width: 10mm
LED quantity: 608 LEDs/M
Cutting length: every 25mm
Color temperature: CCT, Warm White(2700K) to Cool White(6500K).
Color Rendering Index: Ra＞90
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°
Product details
1. The flexible two-color LED light band (warm white / daylight) has been specially designed for variable white color in a single application.
2. Warm white and daylight LEDs are mounted alternately and can be individually controlled by our controller
Typically, you must install both warm white and daylight LED strips in parallel if you need both colors in the same application or project. This means excessive extension cords and the need for a more powerful power supply. Now you have a smarter and easier choice: LED strips of light give you any desired white color temperature. The color temperature can be set between 2700 K (when all warm white LEDs are lit) and 6500 K (when all daylight LEDs are lit) by blending these two colors.
3. You save a lot of space, time and costs compared to installing two white light sets
4. This dual color temperature strip is perfect for any area where the color temperature of the lighting needs to be adjusted, including TV / movie lighting, kitchens, base units, handrails, pedestals, recesses, shelves, cabinets, shadow joints and railings.
Datasheet
| Part number |
WES-FCOB-608
|
| LED Quantity |
608 pcs/meter
|
| PCB width |
10mm
|
| Color temperature (CCT) |
2700K+6500K |
| RA |
>90
|
| Wattage |
8W~16W
|
|
Cutable Length
|
24V(26.32mm) |
| IP Rate |
IP20/IP65
|
Advantages
Application
IP20 not waterproof. Suitable for decorating your TV wall or cabinets, bedroom, kitchen, living room, shelves or displays, hallways, DIY backlighting, table lamps, toy lamps, DIY lighting, etc.
