Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-480
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Product: |
CRI90 COB Led Strip |
Color Temperature: |
3000K, 4000K,6000K |
LED Qty: |
480 Chips/meter |
Ip Rating: |
IP20 |
Pcb Color: |
White PCB |
Application: |
Home Lighting |
Product: |
CRI90 COB Led Strip |
Color Temperature: |
3000K, 4000K,6000K |
LED Qty: |
480 Chips/meter |
Ip Rating: |
IP20 |
Pcb Color: |
White PCB |
Application: |
Home Lighting |

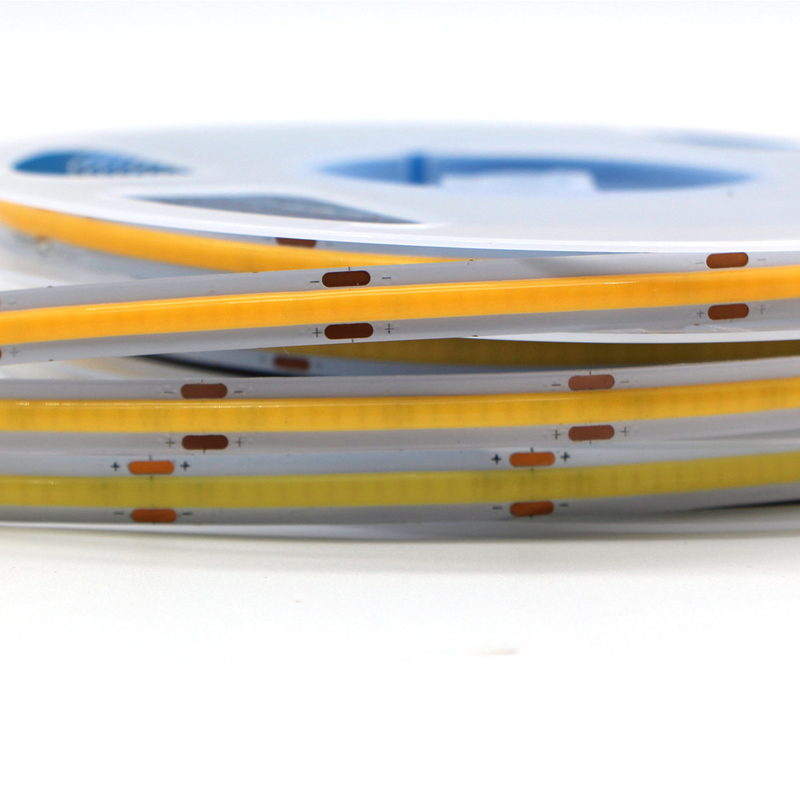

CRI 90 10W Flip-Chips 8mm IP20 Cuttable Flexible COB LED Strip
1. Commercial Led Strip:
The COB LED strip light uses 480 LED chips on 1 meter which creates brighter and smoother lighting. 16.4ft led strip line emits 5500 Lumens of 3000K light. Its stable and reliable, prefect for various commercial projects.
2. Cuttable & Flexible:
The cob led strip can be bent at any angle. Cuttable and linkable allows you to reach the length and shape you needs, which suitable for Shopping mall, Living room, Kitchen, Library, Office and other large space. NO glare, Soft light, Safe to eye.
3. Linear Lighting:
Uniform distribution of linear lighting, 180 degrees beam angle design, NO MORE worries about dark spot. The led light strip is also compatible with conventional strip dimmers for dimming(NOTE: The voltage and power should be matched--DC24V/50W)
Datesheet
| Part number |
WES-FCOB-320
|
WES-FCOB-480 |
| LED Quantity |
320 pcs/meter
|
480 pcs/meter |
| PCB width |
8mm/10mm
|
6mm/8mm/10mm |
| Color temperature (CCT) |
2700K 3000K 4000K 6000K Red, Green, Blue, OEM
|
2700K 3000K 4000K 6000K Red, Green, Blue, OEM |
| RA |
90 (80 optional)
|
90 (80 optional) |
| Wattage |
8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(10W) |
6mm 12V(6W) 24V(8W) 8mm 12V(8W) 24V(10W) 10mm 12V(10W) 24V(14W) |
|
Cutable Length
|
50mm | 50mm |
| IP Rate |
IP20/IP65/IP67
|
P20/IP65/IP67 |
Advantages
1. Adopt Brand Led Chip, high Brightness, Low Light Decay.
2. Use low voltage curcuit, saftey DC12V/DC24V power, safe to use
3. Beam Angle 180°. High Color Efficiency, Uniform Illumination.
4. Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow, and OEM colors
5. Cuttable at every cutlines, you can make your own design DIY lights
Application:
Product Photo
